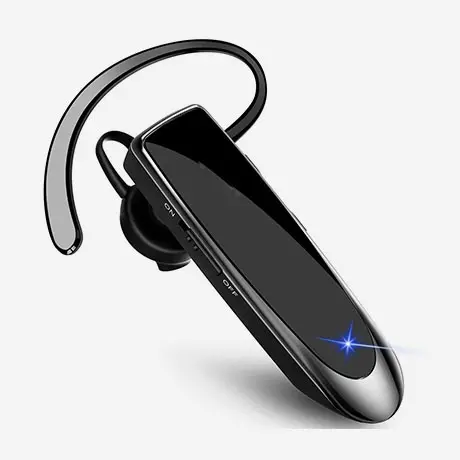

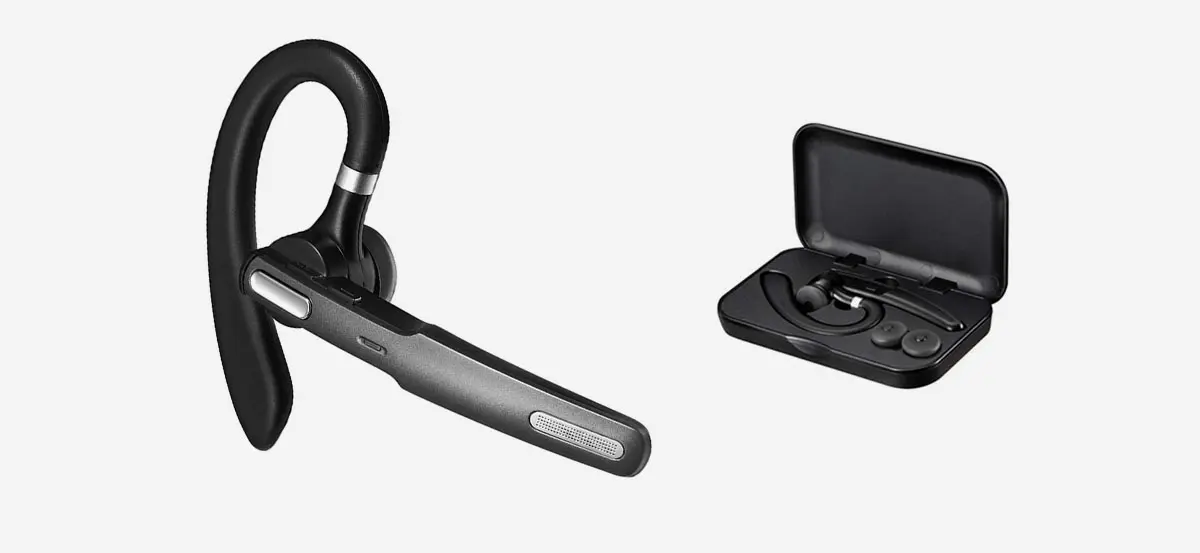

Bluetooth headset

Description

This battery is really the latest state of the art technology in rechargeable.

It is extremely thin, light weight and super thin compared to any rechargeable chemistry.

Low weight, small size but huge capacity.

The other advantage of the Lithium Polymer technology is the very low self discharge .

The size and capacity is customization

Features

Rechargeable high volume Lithium-ion Battery

WIth the best ingredients and advanced compaction technology, to ensure the highest desity and capacity in the smallest size.

High capability,Lightweight,Low internal resistance

Pure cobalt materials, voltage difference tolerance<0.02V, internal resistance<3mΩ.

Excellent safety performance,Excellent discharge performance

With Seiko IC, PCM assembled for charge, dicharge, short-circuit and temperature protection.

Specifications

Serial number	Battery Series	Model	Typical Capacity	Min. Capacity	Impedance	Nominal Voltage	Dimension			Weight	Tab Distance
Serial number	Battery Series	Model	/mAh	/mAh	/mΩ	/V	Max	Max	Max	g	mm
1	XX1225	031225	55	50	≤500	3.7	3.2	12.5	25.5	1.2	3.5~5.5
14		381225	80	74	≤300	3.7	3.9	12.5	25.5	1.6	3.5~6.5
15		041225	90	85	≤350	3.7	3.9	12.5	25.5	1.7	3.5~6.5
17		051225	110	100	≤280	3.7	5.0	12.5	25.5	2.6	3.5~5.5
18		061225	100	105	≤250	3.7	6.2	12.5	25.5	2.7	3.5~5.5
19		651225	130	130	≤280	3.7	6.7	12.5	25.5	2.7	3.5~5.5
21	XX1230	031230	75	70	≤400	3.7	3.20	12.5	30.5	1.5	3.5~5.5
		351230	85	75	≤350	3.7	3.7	12.5	30.5	1.9	3.5~5.5
		041230	100	92	≤300	3.7	4.2	12.5	30.5	2.0	3.5~5.5
		451230	135	130	≤200	3.7	4.5	12.5	30.5	3.0	4~6
		051230	130	120	≤220	3.7	5.2	12.5	30.5	2.9	3.5~5.5
		551230	140	130	≤200	3.7	5.7	12.5	30.5	3.0	3.5~5.5
22	XX1235	031235	90	80	≤310	3.7	3.0	12.5	35.5	1.9	3.5~5.5
		041235	120	100	≤260	3.7	4.2	12.5	35.5	2.7	3.5~5.5
		451235	130	120	≤220	3.7	4.5	12.5	35.5	2.9	3.5~5.5
		051235	150	150	≤150	3.7	5.1	12.5	35.5	3.2	3.5~5.5
		551235	180	180	≤160	3.7	5.4	12.5	35.5	3.8	3.5~5.5
		061235	190	170	≤180	3.7	6.2	12.5	35.5	4.3	3.5~5.5
		651235	150	150	≤150	3.7	5.8	12.5	35.5	4.8	3.5~5.5
		071235	240	220	≤130	3.7	7.2	12.5	35.5	4.6	3.5~5.5
41	XX1730	031730	100	100	≤300	3.7	3.2	17.5	30.5	2.9	8±2
		451730	170	160	≤180	3.7	4.7	17.5	30.5	3.3	7±2
		451730	190	180	≤180	3.7	4.7	17.5	30.5	3.7	7±2
		051730	200	190	≤170	3.7	5.2	17.5	30.5	4.3	6±2
		551730	230	210	≤160	3.7	5.7	17.5	30.0	5.0	6±2
51	XX2025	032025	110	105	≤250	3.7	3.2	20.3	25.5	2.8	10.5~12.5
		042025	150	150	≤200	3.7	4.2	20.3	25.5	3.4	9~11
		422025H	180	170	≤200	3.7	4.4	20.3	25.5	3.9	9.5~11.5
		052025	180	160	≤200	3.7	5.2	20.3	25.5	3.9	7±2
		552025	240	200	≤150	3.7	5.7	20.3	25.5	4.6	7±2
		062025	250	250	≤150	3.7	6.2	20.3	25.5	4.9	7.5~9.5
		092025	360	340	≤120	3.7	8.8	20.3	25.5	6.8	6±2
52	XX2030	032030	130	120	≤260	3.7	3.2	20.5	30.5	2.2	8±2
		382030	180	170	≤170	3.7	4.0	20.5	30.5	3.9	8±2
		042030	180	180	≤180	3.7	4.2	20.5	30.5	4.8	9~11
		052030	260	260	≤150	3.7	5.2	20.5	30.5	5.2	9~11
		552030	280	260	≤120	3.7	5.7	20.3	30.5	5.6	8~10
		062030	300	280	≤110	3.7	6.2	20.3	30.5	6.0	7.5~9.5
		072030	400	400	≤120	3.7	6.9	20.3	30.5	6.8	7~9
		092030	500	500	≤90	3.7	9.2	20.3	30.5	8.5	4~6.5
53	XX2035	032035	160	160	≤180	3.7	3.2	20.3	35.5	3.4	10.5~12.5
		352035	190	180	≤150	3.7	3.7	20.3	35.5	4.3	8±2
		042035	240	220	≤150	3.7	4.0	20.3	35.5	4.6	9~11
		052035	320	310	≤100	3.7	5.0	20.3	35.5	6.4	8.5~10.5
		532035	340	320	≤100	3.7	5.5	20.3	35.5	6.7	7±2
		062035	400	400	≤100	3.7	6.3	20.3	35.5	8.1	7.5~9.5
		952036	650	650	≤80	3.7	9.5	20.3	36.0	11.7	4~6.5
70	XX2530	382530	240	230	≤150	3.7	4.0	25.5	30.5	4.6	13±2
		452530	300	280	≤100	3.7	4.5	25.5	30.5	6.0	12.5~14.5
		052530	400	370	≤150	3.7	5.5	25.5	30.5	6.8	13~15
		552530	380	350	≤80	3.7	5.7	25.5	30.5	7.8	10±2
		062530	450	450	≤80	3.7	6.5	25.5	30.5	8.1	12~14
		652530	440	420	≤100	3.7	6.7	25.5	30.5	8.8	9±2
		072530	450	460	≤100	3.7	7.0	25.5	30.5	8.3	10.5~12.5
		082530	600	600	≤80	3.7	8.2	25.5	30.5	13.0	9~11
73	XX2535	032535	220	220	≤180	3.7	2.9	25.3	35.3	4.2	12~14
		352535	260	240	≤150	3.7	3.7	25.3	35.3	5.0	12±2
		382535	320	300	≤120	3.7	4.0	25.3	35.3	6.8	12±2
		042535	320	320	≤120	3.7	4.2	25.3	35.3	6.8	11.5~13.5
		052535	400	390	≤100	3.7	5.2	25.3	35.3	8.1	11~13
		062535	500	500	≤90	3.7	5.8	25.5	35.5	9.7	12~14
		652535D2C	380	390	≤100	3.7	6.3	25.5	35.5	10.0	11.5~13.5
		072535	550	550	≤80	3.7	6.7	25.5	35.5	10.7	10~12
		082535	750	700	≤80	3.7	8.2	25.5	35.5	14.6	9~11
74	XX2540	452540	420	400	≤80	3.7	4.7	25.3	40.5	7.8	11.5~13.5
74	XX2540	062540	550	570	≤80	3.7	6.2	25.3	40.3	10.8	11~13
99	XX3040	033040	320	340	≤120	3.7	3.2	30.5	40.5	7.5	19~21
		053040	300	350	≤100	3.7	4.8	30.5	40.5	9.0	17~19
		053040	560	530	≤80	3.7	5.2	30.5	40.5	10.8	15±2
		523040	600	580	≤80	3.7	5.4	30.5	40.5	12.2	15±2
		553040	600	580	≤80	3.7	5.7	30.5	40.5	12.2	15±2
		753040	850	850	≤60	3.7	7.7	30.5	40.5	16.5	11±2
101	XX3048	033048	380	360	≤100	3.7	3.2	30.5	48.5	7.5	16±2
		353048	450	420	≤90	3.7	3.7	30.5	48.5	8.5	16±2
		043048	540	520	≤80	3.7	4.2	30.5	48.5	10.5	15±2
		053048	700	700	≤60	3.7	5.2	30.5	48.5	14.0	14±2
		553048	750	730	≤60	3.7	5.6	30.5	48.5		14±2
		063048	880	850	≤60	3.7	6.0	30.5	48.5	17.0	14±2
		073048	1000	950	≤60	3.7	7.2	30.5	48.5	19.5	13±2
		753048	1200	1050	≤60	3.7	7.8	30.5	48.5	21.5	13±2
		083048	1200	1150	≤50	3.7	8.5	30.5	48.5	23.5	12±2
		103048	1500	1400	≤50	3.7	10.3	30.5	48.5	29.0	10±2
