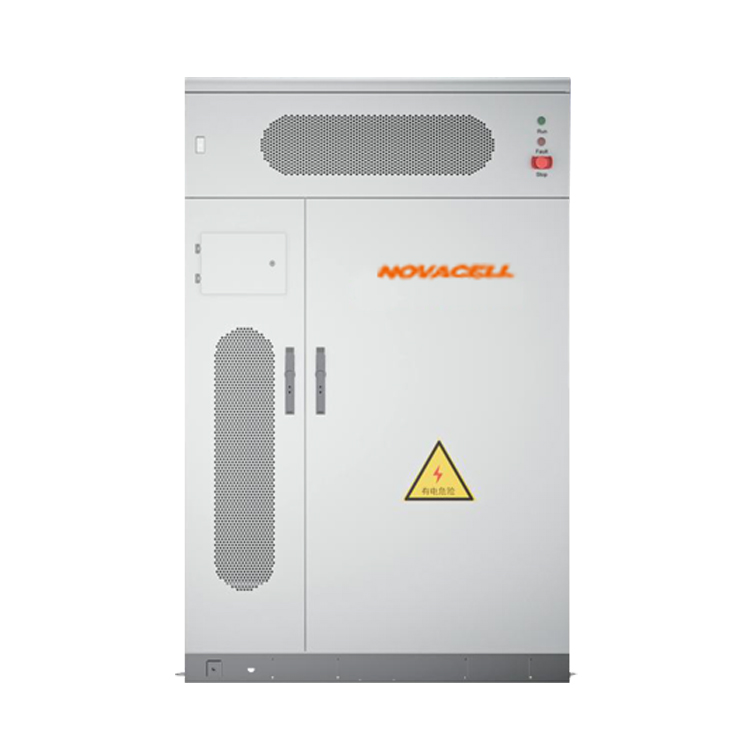

NOVACELL NOVACELL 100kw 232kwh 261kwh Outdoor Cabinet Bess Battery Energy Storage System 6500+ Life Cycles- • SHENZHEN NOVA ENERGY CO LTD NOVACELL NOVACELL 100kw 232kwh 261kwh Outdoor Cabinet Bess Battery Energy Storage System 6500+ Life Cycles

Inquire Now

Features

Voltage: AC400V
Rated Output Power: 100kW
Battery Cell: LiFePO4 Battery
Dimension with PCM: 1800*1200*2300mm
Working temp.: -20~55°C
N.W.: 3.2t
IP Rate: IP54
Communication port: CAN/TCP/IP

Advantages

6500+ Life Cycles
Easy Installation
Easy Maintenance
Expandable
Warranty: 3+ years
Cheap cost effective
Most Inverter compatiable
Stackable
Commercial & Industrial ESS

Application

Solar Energy Storage
Factories
Shopping malls
Residential areas
Hospitals
Telecom backup power
Data center
UPS
Wind energy storage

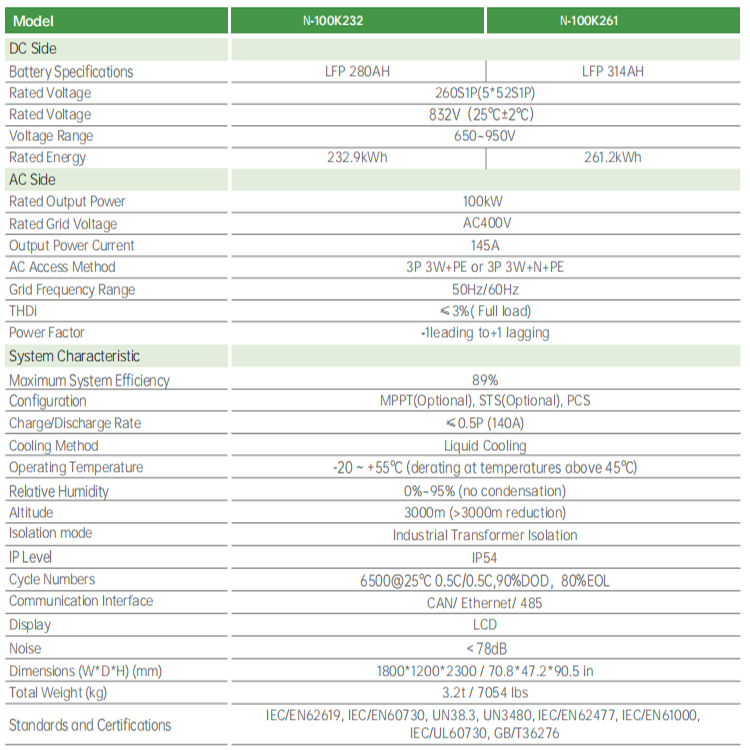

Specification

More details

Electrical Characteristics	Rated Voltage	260S1P(5*52S1P)
	Nominal Capacity	232.9kWh
	Cycle life	6500+ cycles @(25±2℃,0.5C/0.5C,80%DoD)
	Rated Voltage	832V（25℃±2℃）
	Voltage Range	650~950V
	Output Power Current	145A
Mechanical	Certification	IEC/EN62619, IEC/EN60730, UN38.3, UN3480, IEC/EN62477, IEC/EN61000, IEC/UL60730, GB/T36276
	Dimension	180012002300mm
	N.W.	3.2t
	PCM	Included
	Lock	Included
	Connector, NTC	TBA
	Switch,Indicator,display	TBA
	Step-up/Step-down	TBD

We have a variety of lithium batteries available, including the 5.12KWH Module, 10.24KWH Module N80K~N130K 81.92kWh 102.4kWh 122.88kWh 133.12kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles

Photo Exhibition

NOVACELL NOVACELL 100kw 232kwh 261kwh Outdoor Cabinet Bess Battery Energy Storage System 6500+ Life Cycles
