48V 50Ah 100Ah 150Ah 200Ah lifepo4 Lithium ion battery for home use solar storage system

Inquire Now

Features

Battery type: LiFePO4
Energy: 5KWH
Battery type: Power wall
Model: NV-PW48100LFPP
Brand: NOVACELL
IP Rate: IP54
Grid type: Off gird/Hybrid
Communication: CAN/RS485/RS232

Advantages

N.W: ≤48kg
Life Cycle: 6000+ cycles
Warranty: 3+ years
Installation: ECasy
Compatible: Most brand inverters

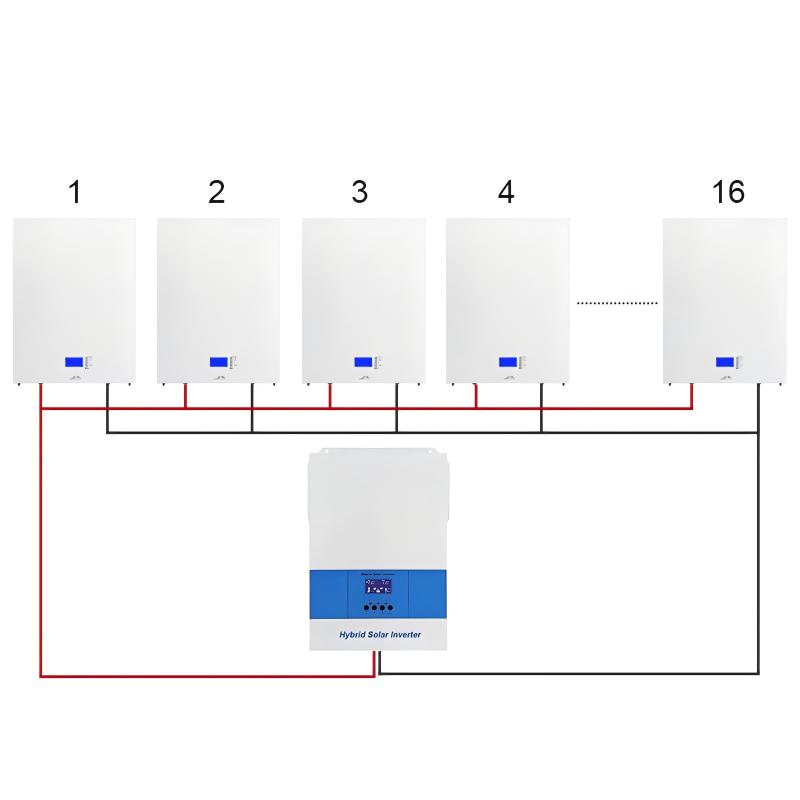

Capacity expansion: up to 16pcs
Certificate: CE RoHS
Safe level: The highest

Application

Solar storage
Home energy system
Solar system
Home storage
UPS
Home use
Solar energy system
Wind energy storage

Specification

Electrical Characteristics	Nominal Voltage	51.2V
	Nominal Capacity	100Ah
	Energy	5120Wh
	Battery type	LiFePo4
	Cycle Life	6000+ cycles
	Months Self Discharge	≤3% per month at 25℃
Standard Charge	Charge Voltage	58.4±0.2V
	Charge Mode(CC/CV)	At 0℃~45℃, charged to 58.4V at constant current of 0.2C5A, and then change continuously with constant voltage of 58.4V until the current was not more than 0.02C5A.
	Standard Charge Current	50A
	Max.Charge Current	100A
Standard Discharge	Standard discharge Current	50A
	Max. Discharge Current	100A
	Disxcharge Cut-off Voltage	40.0V
Environmental	Charge Temperature	0℃~45℃
	Discharging	-10℃~60℃
	Storage temperature	-5℃~35℃
	Storage Humidity	≤75% RH
	Water Dust Resistance	IP54
Mechanical	Cell	16S1P
	Housing	Steel
	Dimension(LWH*)	4U 482400170mm
	Communication interface	RS485/RS23/CAN
	Weight	≤48kg

Details

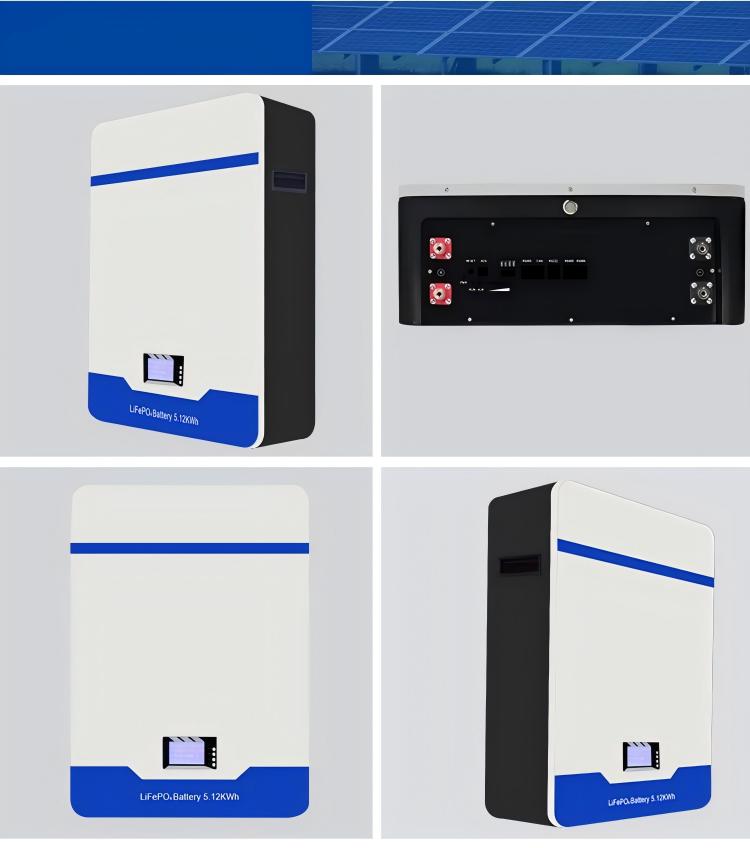

48V 100Ah energy storage battery could be for solar, wind and electricity, this battery is power wall mounted type, it's very easy for installation, this battery is compatible with most brand inverters in the market, and this battery could be connected with other batteries to increase the whole system energy storage capacity
