12V 145Ah LFP Lifepo4 Custom Battery Pack for EV Backup

Inquire Now

Nominal Voltage: 12V
Rated Capacity: 145Ah
Battery Cycle: 3500+
Max Constant Discharge Current: 150A
Peak current: 300A
Charge voltage: 14.6V
Discharge cut off voltage : 10.0V
Charger: 14.6V 72A
Battery Weight: 19.5kg
Battery Dimensions: 30.6 x 17.2 x 22.5cm

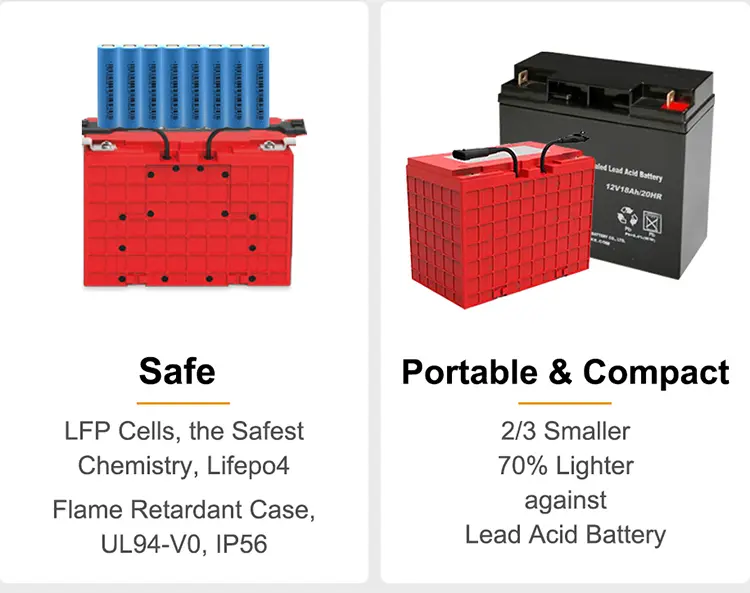

Advantages

1. Safety: LFP cells
2. Durability: 3500+ cycles(100% DOD)
3. Robust casing: Flame-retardded plastic

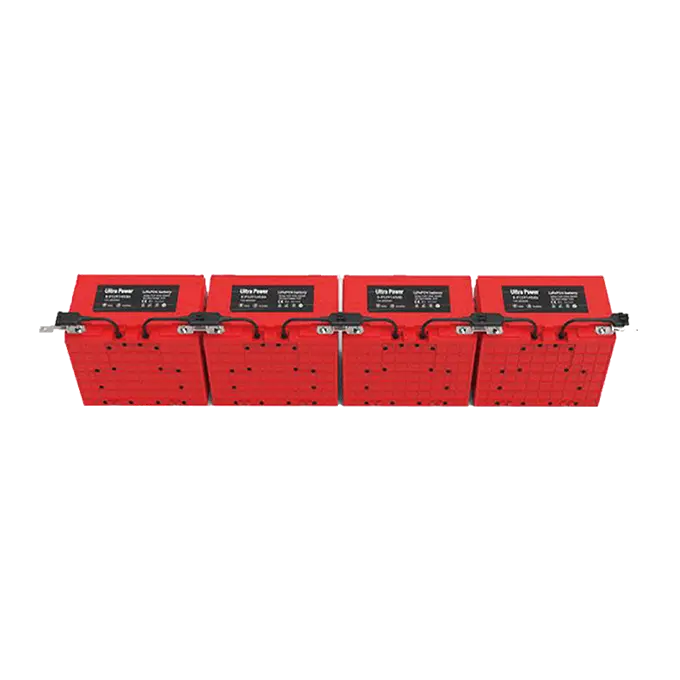

4. Modularity scalability and flexbility: scalable in series from 12V to 750V, scalable in parallel to up to 126 modules, Easy installation, easy maintenance, easy to expand
5. Small and lighter 1/2 the size of a lead acid battery
6. Smart battery management: customize protocol is supported, Automatic intra and inter module balancing

Application

1. RV

2. AGV

3. Forklift

4. Yacht

5. E-rickshaw

Specification

Nominal Voltage		12.8V
Nominal Capacity (C/2, 23°)		145Ah
Standard Discharging (25°C)	Max Cont Current	150A
	Peak Load Current (30 Sec)	300A
	Cut-off Voltage	10.0V
Standard Charging	Charge Voltage	14.6V
	Recommended Current C/2	72A
	Charge Time C/2	2.5H
Terminals, Female-Thread		M8 x 1.25
Operating Temperature		Charging 0 ~ 45°C Discharge -20 ~ 60°C
Operating Humidity		5% to 95%, non-condensing
Water/Dust Resistance		IP56
Storage Temperature		< 1 Month ------ -20-45°C
		1-3 Months ------ -20-35°C
		3-12 Months ------ -20-25°C

Details

Photo Exhibition
